SAIC GM WuLing XingGuang PHEV

The SAIC GM Wuling XingGuang PHEV is equipped with a plug-in hybrid system comprising a 1.5L engine and an electric motor. Depending on the battery size, the CTLC pure electric range is 70 km and 150 km, respectively.
Send Inquiry
Product Introduction
Products Description

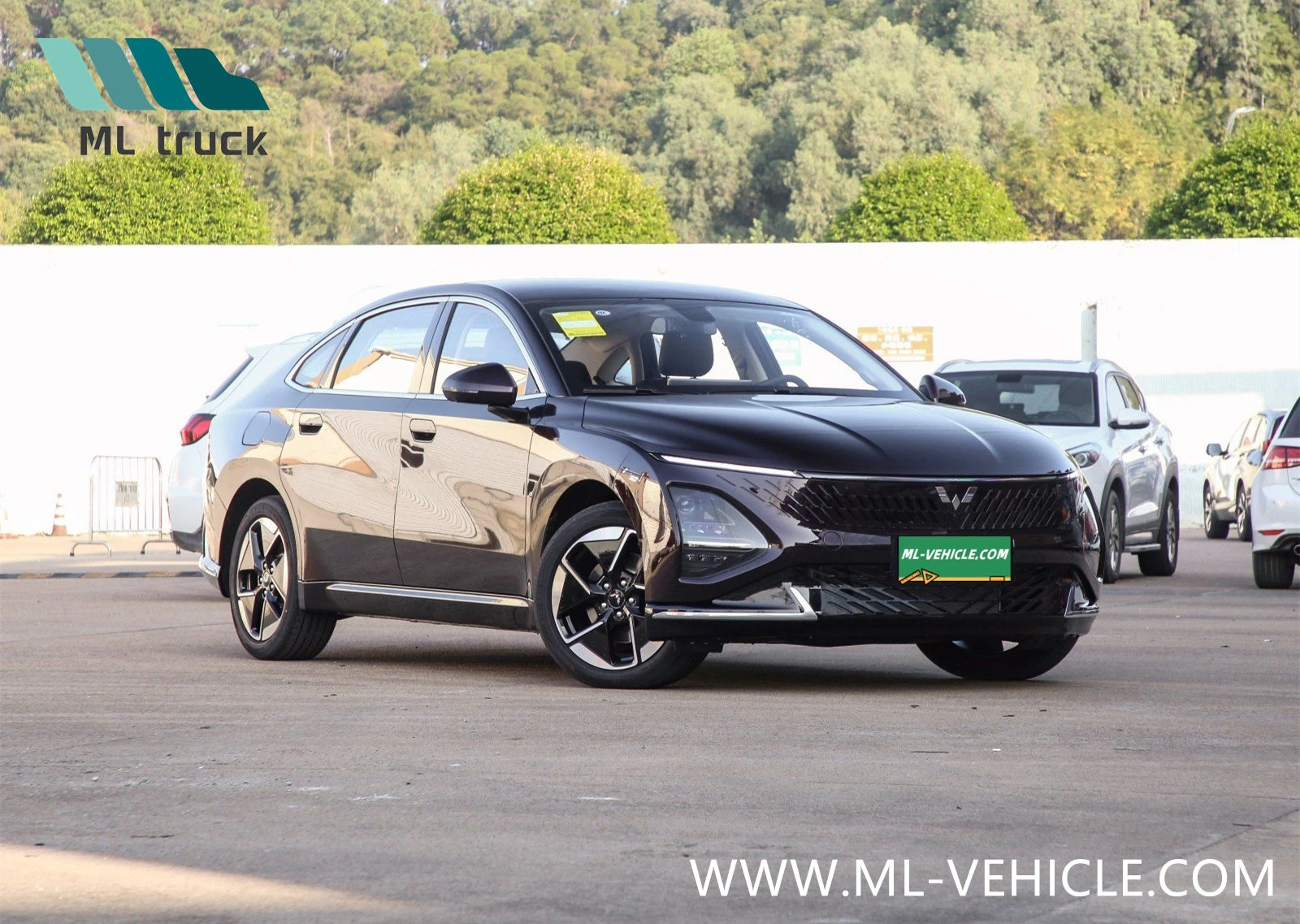

In terms of appearance, the SAIC GM Wuling XingGuang PHEV adopts the "Star Wing" aesthetic design concept, with an overall avant-garde and stylish look, featuring the Wuling silver badge. The plug-in hybrid version of the model uses an expansive layout for the front grille, complemented by the "Star Ring" daytime running lights. In contrast, the electric version features a closed grille design, and while both use segmented headlights, there are distinct differences in the specific details compared to the plug-in hybrid version.

The smooth and dynamic lines on the side of the car, along with the 18-inch Star Twist wheels, contribute to a sleek design. The rear end features a continuous "Star Ring" taillight with a futuristic touch, and below it is a large black area, giving the overall style a sporty feel. The dimensions of the vehicle are 4835/1860/1515mm in length, width, and height, respectively, with a wheelbase of 2800mm.

3
The exterior of the SAIC GM Wuling XingGuang PHEV adopts the "Star Wing" aesthetic design, featuring a sleek and elegant appearance. The streamlined body lines, coupled with a sloping roof design, showcase a sporty and aerodynamic style, embodying the characteristics of a sedan with a coupe-like flair.
12
The interior aisle is as wide as 390mm, providing a legroom of up to 1 meter. The trunk has a reserved space of 540 liters, easily accommodating 2 luggage cases of 24 inches each and 2 cases of 20 inches each. Additionally, there is a hidden storage compartment of 33 liters beneath the carpet.

As for the interior, the SAIC GM Wuling XingGuang PHEV is equipped with a 15.6-inch central control screen and an 8.8-inch LCD instrument panel, while retaining some commonly used physical buttons. The central console features relatively straight lines, accompanied by piano lacquer panels and metal decorations, creating a visually appealing layered effect.

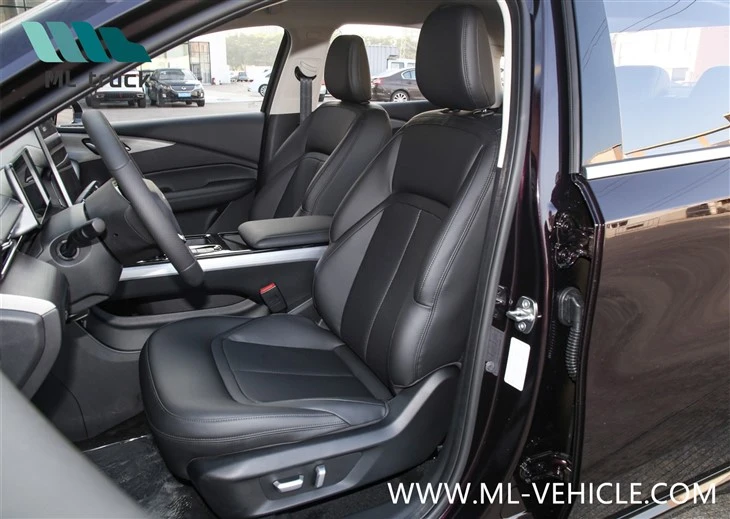

The unique "lounge chair design" of the SAIC GM Wuling XingGuang PHEV allows the front seats to fold back 180 degrees, aligning with the rear seat cushion to form a lounge chair. The trunk volume can reach 540L, and there is also a hidden 33L storage compartment under the carpet.

In terms of power, the SAIC GM Wuling XingGuang PHEV is equipped with a 1.5L engine and an electric motor to form a plug-in hybrid system. The engine has a maximum power of 106 horsepower, and the electric motor has a maximum power of 177 horsepower. The 1.5L engine incorporates innovative technologies such as an advanced intake system, Atkinson cycle, low-pressure cooling EGR, DLC diamond-like coating, split cooling, and an efficient electronic water pump, achieving a maximum thermal efficiency of 43.2%. The car is equipped with an electromagnetic single-speed DHT transmission with an electromagnetic clutch, reducing weight by 5% compared to traditional hydraulic clutches and minimizing energy loss.

In terms of the battery, the SAIC GM Wuling XingGuang PHEV is equipped with Wuling ShengLian batteries, with capacities of 9.5 kWh and 20.5 kWh. The CTLC pure electric range is 70 km and 150 km, respectively. The battery has an IP68 protection level and is equipped with a high-precision intelligent BMS system, combined with cloud-based AI-BMS system, enabling real-time intelligent diagnosis and accurate early warning of faults.

Products parameters

Category Specification
Power - Engine: 1.5L, maximum power 106 horsepower
  - Electric Motor: Maximum power 177 horsepower
  - Transmission: Electromagnetic single-speed DHT
  - Battery: Wuling ShengLian, 9.5 kWh and 20.5 kWh options
  - Range: CTLC pure electric range - 70 km and 150 km
Model - SAIC GM Wuling XingGuang PHEV
  - Plug-in Hybrid and Electric Versions
Dimensions - Length: 4835mm
  - Width: 1860mm
  - Height: 1515mm
  - Wheelbase: 2800mm
Product Picture



8 9 11

14 15 17
