Sinotruk HOWO Hot Sale Dr Congo 8X4 Reliable Mining Dump Truck
video

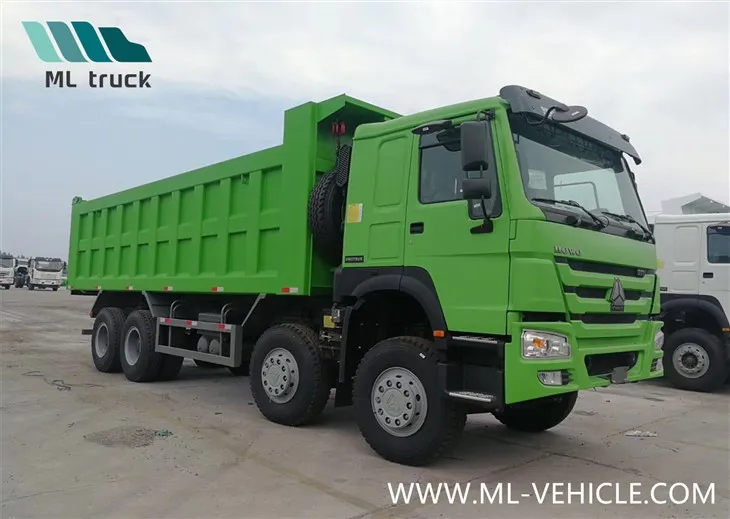

Sinotruk HOWO Hot Sale Dr Congo 8X4 Reliable Mining Dump Truck

After-sales Service: 24 Hours After-Sale Service Warranty: 1 Year or 50000km Which Comes First Vehicle Condition: Brand New Transmission Type: Manual Power: Diesel Load Capacity: 21-30t Emission Standard: Euro 2
Send Inquiry
Product Introduction



Quick delivery

Various logistics modes are available

Quality and Trust

 first-class company reputation.

Secure payment

100% secure payment

24/7 Support

Dedicated support





Product Images

202005131946IMG3478



202005131947IMG3479



202005131947IMG3480



202005131947IMG3481



841














84



Product Description

SINOTRUK HOWO 8x4 used dump trucks are in great demand from customers, the proven product, which features reliable structure, great loading capacity, excellent power, reliable performance. This dump truck model could meet the requirements of different road conditions, and could satisfy your need of long distance highway transportation.
     If you would like to know more details or are interested in this product, please feel free to contact me.



Sinotruk HOWO 8x4 Dump Truck
Chassis Model ZZ3317V3867B1 (Left/ Right Hand Driving Type Optional)
Engine Model: WD615.47, Euro 2, 371 HP
6-cylinder in-line with water cooling, turbo-charging and intercooling
Displacement: 9.726 L
Clutch Single-plate dry diaphragm spring clutch,diameter430mm,hydraulically operating with air assistance
Gearbox SINOTRUK BRAND, manual operation, HW19710, 10 forward and 2 reverse, with Power Take-Off (PTO)
Front Axles HF9, 9000kg with drum brake system
Rear Axles HC16, 2X16000kg, double stage reduction (central+ hub), cast axle housing, ratio: 5.73
Suspension Front suspension: 10 pcs leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer
Rear suspension: 12 pcs leaf springs with bogie spring and stabilizer
Steering System famous brand power steering, model ZF8118 , hydraulic steering with power assistance
Braking System Front drum rear drum brake, four-circuit protection valve
Service brake: dual circuit compressed air brake
Parking Brake(emergency brake): spring energy, compressed air operating on rear wheels
Auxiliary brake (optional): engine exhaust brake(EVB), antilock brake system (ABS), automatic brake gap adjustment arms
Tires 12.00R20 (12.00-20, 315/80R22.5 optional), with one spare tyre
Fuel Tank Volume (L) 400
Dead Weight 14500
Gross Vehicle Weight (kg) 39000
Rated Loading Weight (kg) 25850
Overall Dimension
(LxWxH) (mm)		 10545x2550x3450
Wheelbase (mm) 1800+3825+1350
Min.Ground Clearance (mm) 314
Approach/Depart Angle(°) 19/ (27/65)
Gradeability (%) ≥50
Min. Turning Diameter (m) 15
Cargo Body Size (LxWxH) (mm) 7600x2300x1500
Cargo Body Volume (m3) 27
Remark (Engine Power Option) 400HP; 371HP
