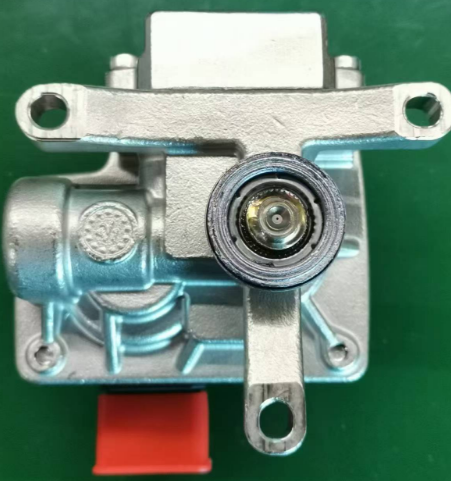

Urea Dosing Pump Nozzle 51154036012 51154036020 For MAN Truck

Diesel exhaust fluid Urea pump nozzle 51154036012 51154036020 for MAN truck





Highlight the main features and functions for Urea Dosing Pump Nozzle 51154036012 51154036020 For MAN Truck

1️⃣ 12V High Flow 👉 Operates at 12V with a high urea flow rate

Suitable for vehicles with a 12V electrical system (such as light trucks, pickups, and some construction machinery).

High flow ensures sufficient urea injection for the SCR system.

2️⃣ With Welding Plate 👉 Comes with a built-in mounting base for easy installation

Allows secure attachment to the DEF (urea) tank or vehicle frame.

Ensures stable installation, reducing vibrations that could affect pump performance.

3️⃣ With Heating Function 👉 Equipped with a heating element to prevent urea freezing in cold conditions

Ideal for use in cold climates, preventing DEF from freezing at below -11°C (12°F).

Uses an electric heating system to quickly thaw frozen urea when the engine starts.

4️⃣ With Temperature Sensor 👉 Built-in temperature sensor to monitor DEF temperature in real time

Helps prevent overheating or freezing of the DEF solution.

Works with the heating function to automatically regulate temperature and optimize urea injection.

✅ Summary: This urea pump is designed for cold weather conditions, easy installation, and compatibility with 12V systems. It supports high-flow urea delivery, making it ideal for light commercial vehicles and diesel-powered vehicles.





RFQ

A.  Why Is My Urea Pump Not Working Properly? 🚛🔧

A malfunctioning urea pump can cause SCR (Selective Catalytic Reduction) system failures, engine derate, and emissions non-compliance. Below are the most common reasons your urea pump may not be working properly, along with solutions.

1. Clogged or Crystallized Urea Deposits

🔹 Cause:

Using low-quality DEF (Diesel Exhaust Fluid).

DEF evaporation leaves behind urea crystals, blocking the pump.

🔹 Symptoms:

Poor DEF flow, low pressure warnings.

Check engine light (P20E8 – DEF pressure too low).

🔹 Solution:
✅ Flush the system with warm deionized water.
✅ Use only ISO 22241-certified DEF.
✅ Regularly clean or replace DEF filters.

---

2. Electrical or Sensor Issues

🔹 Cause:

Damaged wiring harness or loose electrical connections.

Faulty pressure sensor or control module.

🔹 Symptoms:

No power to the urea pump.

Error codes: P20B9 (DEF pump control module failure).

🔹 Solution:
✅ Check and secure all electrical connections.
✅ Inspect wiring for cuts, corrosion, or loose pins.
✅ Use an OBD-II scanner to diagnose sensor faults.

---

3. DEF Freezing (Cold Weather Issue)

🔹 Cause:

DEF freezes at -11°C (12°F).

The pump's heating element may not be working.

🔹 Symptoms:

No DEF flow, system warnings, or delayed DEF injection.

SCR efficiency reduced in cold weather.

🔹 Solution:
✅ Ensure the urea pump has a working heater.
✅ Park in a warm area or use DEF tank insulation.
✅ Wait for the SCR system to warm up before driving.

---

4. DEF Pump Failure (Mechanical Issue)

🔹 Cause:

Worn-out or failing pump components.

Contaminated DEF damaging internal seals.

🔹 Symptoms:

Engine derate mode (reduced power).

No DEF injection, or pump runs but doesn't build pressure.

🔹 Solution:
✅ Test the pump pressure with an OBD scanner.
✅ If the pump doesn't function, replace it with an OEM or high-quality aftermarket unit.

---

5. DEF Tank Running Empty

🔹 Cause:

Running the DEF tank completely dry can damage the pump.

🔹 Symptoms:

Engine warning lights and SCR system faults.

Error codes: P204F (DEF system efficiency low).

🔹 Solution:
✅ Always keep at least 25% DEF in the tank.
✅ If the system ran dry, refill and prime the pump before restarting.

---

Final Troubleshooting Steps

✅ Step 1: Scan for OBD-II error codes.
✅ Step 2: Inspect wiring, sensors, and connectors.
✅ Step 3: Check DEF quality and crystallization.
✅ Step 4: Test the urea pump's electrical signals and pressure.
✅ Step 5: If the pump is faulty, replace it.



B. Would you like a detailed guide on how to test a urea pump? 🚛🔧

Testing a urea pump is essential for diagnosing issues like low pressure, no DEF flow, or system errors. Follow this guide to check whether your urea pump is working correctly.

---

🛠 Tools & Equipment Needed

✔ OBD-II scanner (for reading error codes & testing pump operation)
✔ Multimeter (for checking voltage & continuity)
✔ Pressure gauge (to test DEF pressure output)
✔ DEF-compatible gloves & safety glasses
✔ Clean DEF (for refilling if needed)

---

🔎 Step 1: Scan for Error Codes

Use an OBD-II Scanner

1️⃣ Connect the OBD-II scanner to the vehicle's diagnostic port.
2️⃣ Check for urea system-related fault codes, such as:

P20E8 – DEF pressure too low

P204F – DEF system efficiency low

P20B9 – DEF pump control module failure

P207F – NOₓ reduction efficiency below threshold
3️⃣ Write down any error codes for further troubleshooting.

✅ If no error codes appear, proceed to manual testing.

---

🔌 Step 2: Check Electrical Connections

Test Voltage & Wiring with a Multimeter

1️⃣ Locate the urea pump (usually near the DEF tank).
2️⃣ Disconnect the electrical connector from the pump.
3️⃣ Use a multimeter to test voltage across the power terminals.

Expected voltage: 12V or 24V (depending on the vehicle).
4️⃣ If voltage is too low or absent, check for blown fuses or damaged wiring.
5️⃣ If wiring is intact, the pump control module may be faulty.

✅ If voltage is correct, proceed to pressure testing.

---

💨 Step 3: Test Urea Pump Pressure

Use a Pressure Gauge to Measure DEF Output

1️⃣ Locate the DEF pressure line coming from the pump.
2️⃣ Disconnect the line and connect a pressure gauge.
3️⃣ Start the engine and monitor the gauge reading.

Expected Pressure Readings:

Normal operation: 4-9 bar (58-130 PSI)

If pressure is too low, the pump may be weak or clogged.

If pressure is zero, the pump may not be working at all.

✅ If pressure is too low or missing, proceed to function testing.

---

⚙️ Step 4: Perform a Manual Function Test

Activate the Pump & Check for DEF Flow

1️⃣ Use an OBD scanner to manually activate the urea pump test mode.

This will force the pump to operate for a few seconds.
2️⃣ Listen for a humming or buzzing sound – this indicates the pump is running.
3️⃣ Check if DEF is flowing out of the pump's output line.
4️⃣ If no DEF comes out, inspect for clogged filters or crystallization.

✅ If the pump makes noise but doesn't pump DEF, clean or replace it.

---

🛑 Step 5: Inspect for Crystallization & Blockages

🔍 Look for DEF deposits near hoses and connections.
🔍 If crystallization is found, flush the pump with warm deionized water.
🔍 Replace DEF filters if they appear clogged.

---

🚀 Final Step: Clear Error Codes & Test Drive

1️⃣ If you replaced or cleaned the pump, use the OBD scanner to reset the system.
2️⃣ Start the engine and let it run for 10-15 minutes.
3️⃣ Monitor for error messages or abnormal behavior.
4️⃣ Take the vehicle for a short test drive to ensure proper DEF flow.

✅ If the issue persists, consider replacing the urea pump.



📌 Quick Troubleshooting Summary

Symptom	Possible Cause	Solution
No DEF flow	Clogged filter or crystallization	Flush system & replace filter
No pump noise	No power or faulty wiring	Check voltage & fuses
Low DEF pressure	Weak pump or leaks	Test pressure, replace if low
System errors (P20E8, P204F, etc.)	Sensor failure or poor DEF quality	Scan OBD codes, replace sensors if needed



C.

How to Clean a Urea Pump Properly 🚛🔧

Cleaning your urea pump is crucial for preventing clogs, crystallization, and system failures. Over time, urea deposits (caused by DEF evaporation) can block the pump and hoses, reducing efficiency. This guide will help you clean the pump and restore proper operation.

🛠 Tools & Equipment Needed

✔ Warm deionized water (for flushing crystallized urea deposits)
✔ DEF-compatible gloves & safety goggles
✔ Soft brush or lint-free cloth
✔ DEF filter replacement (if needed)
✔ OBD-II scanner (to reset system after cleaning)

---

🔎 Step 1: Locate & Remove the Urea Pump

1️⃣ Park the vehicle on a flat surface and turn off the engine.
2️⃣ Disconnect the battery to avoid electrical issues.
3️⃣ Locate the urea pump, usually near the DEF tank.
4️⃣ Carefully remove the DEF supply and return hoses.
5️⃣ Disconnect the electrical connectors.
6️⃣ Remove the mounting bolts and take out the pump.

✅ If DEF spills, wipe it off immediately to prevent crystallization.

---

💨 Step 2: Flush the Urea Pump with Warm Deionized Water

1️⃣ Fill a container with warm deionized water (do not use tap water!).
2️⃣ Submerge the urea pump inlet and gently flush it.
3️⃣ If crystallized urea is present, let it soak for 5-10 minutes.
4️⃣ Use a soft brush or cloth to remove any visible deposits.

✅ Do not use harsh chemicals-they can damage the pump.

---

🔧 Step 3: Clean or Replace the DEF Filter

1️⃣ Locate the DEF filter, usually attached to the pump or inline with the DEF hose.
2️⃣ If reusable, rinse it with warm deionized water and let it air dry.
3️⃣ If clogged, replace it with a new DEF filter.

✅ A clogged filter restricts DEF flow, leading to pump failure.

---

🔄 Step 4: Reinstall the Urea Pump

1️⃣ Reconnect the DEF hoses securely.
2️⃣ Reattach the electrical connectors.
3️⃣ Mount the pump back into position and secure the bolts.
4️⃣ Reconnect the battery and ensure all components are tight.

✅ Ensure no leaks or loose connections before starting the engine.

---

🚀 Step 5: Reset the System & Test the Pump

1️⃣ Use an OBD-II scanner to clear any stored error codes.
2️⃣ Start the engine and let it run for 5-10 minutes.
3️⃣ Monitor the urea system for any warning lights.
4️⃣ Check for proper DEF flow and pressure (should be 4-9 bar).
5️⃣ Take a short test drive to ensure everything is functioning correctly.

✅ If errors persist, check for sensor faults or replace the urea pump.

---

📌 Quick Maintenance Tips

✅ Use only high-quality DEF (ISO 22241-certified) to prevent crystallization.
✅ Check & clean the urea pump every 6-12 months to avoid blockages.
✅ Replace the DEF filter regularly to ensure smooth DEF flow.
✅ Keep the DEF tank sealed to prevent contamination.
